45LS11I

Check availability

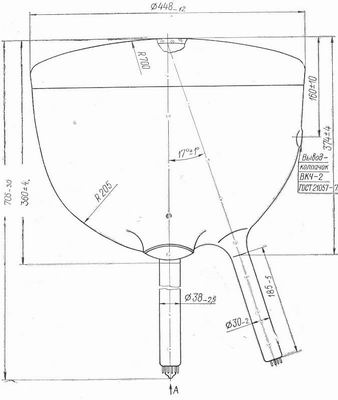

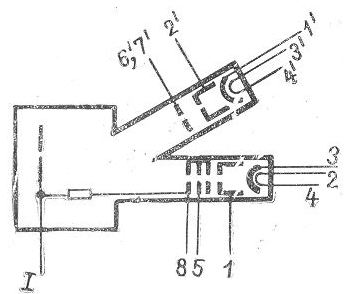

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name45LS11I
Application fieldin air flights dispatch systems
Envelopeglass with outputs on ballon
Mass, kg15
Beam focusingelectromagnetic
Colorgreen
Beam deflectionelectromagnetic
Brightness, kd/sq.m60nit
