16LM1G

Check availability

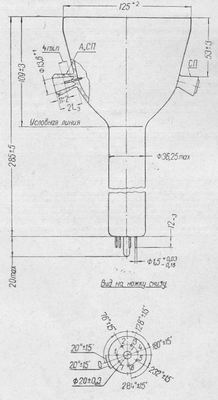

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name16LM1G
ApplicationVisual registration of electrical process
Envelopeglass, side anode
Mass, g1000
Deflection typemagnetic
Beam focusingmagnetic
Colorviolet
Resolution, lines or focused line size, mm0,4mm
Filament voltage, V6,3
Anode voltage, kV20
Afterglow time/colorextended with erasing device
