16LM5V

Check availability

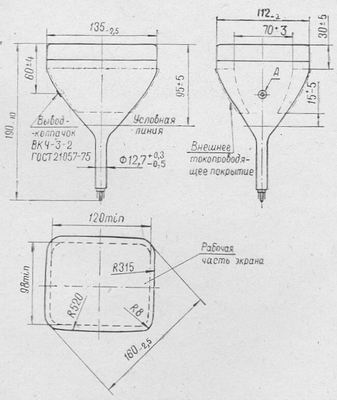

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name16LM5V
ApplicationVisual registration of electrical process
Envelopeglass, side anode
Mass, g550
Deflection degree70
Deflection typeelectromagnetic
Beam focusingelectrostatic
Coloryellow
Resolution, lines or focused line size, mm0,3mm
Brightness, kd/sq.m30
Filament voltage, V1,36
Anode voltage, kV9
Afterglow time/colorextended
