16LM7I

Check availability

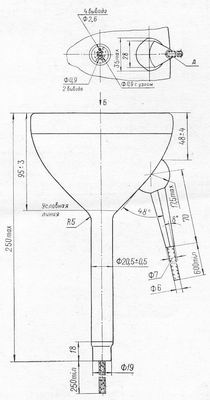

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name16LM7I
ApplicationInformation display system
Envelopeglass, side anode
Mass, g1500
Deflection typeelectromagnetic
Beam focusingcombined
Colorgreen
Brightness, kd/sq.m4000
Filament voltage, V6,3
Anode voltage, kV15
