R-42

Check availability

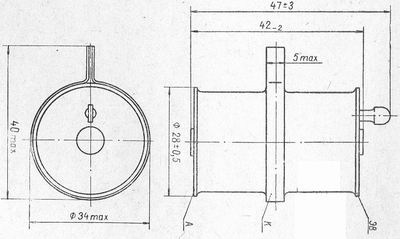

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameR-42
Application fieldapplication in ignition systems
Envelopemetal-ceramic
Mass50
Spark voltage, kV2,2-3,4
Spark frequency, Hz3
Commutated energy, J20
Insulation resistance, MOhm100
Life, pulses2000

See also

R-10 Spark voltage, kV1,35-1,65 R-12 Spark voltage, kV0,128-0,192 R-18 R-18-1 R-21 Spark voltage, kV1,05-2,0 R-22 Spark voltage, kV1,9-2,5 R-23 Spark voltage, kV0,06-0,24 R-24 Spark voltage, kV2,0-5,5 R-26 Spark voltage, kV2,6-3,1 R-27 Spark voltage, kV0,31-0,39
