TR1-15/3

Check availability

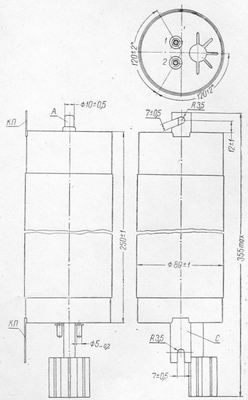

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameTR1-15/3
Cathode typeOxide, indirect heating
EnvelopeMetal
Mass, g2200
Filament voltage, V5
Filament current, A22
A-C voltage, V15
Max.average cathode current, A15
Grid voltage, Vminus 12-2
Max.reverse voltage, kV3
