TR1-6/3

Check availability

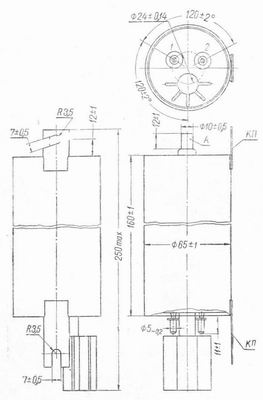

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameTR1-6/3
Cathode typeOxide, indirect heating
EnvelopeMetal
Mass, g900
Filament voltage, V5
Filament current, A13
A-C voltage, V15
Max.average cathode current, A6
Grid voltage, Vminus 2-12
Max.reverse voltage, kV3
