11LM6V

Check availability

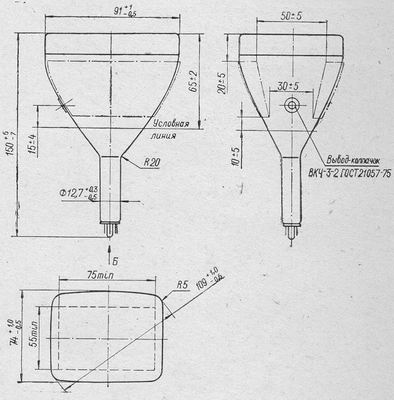

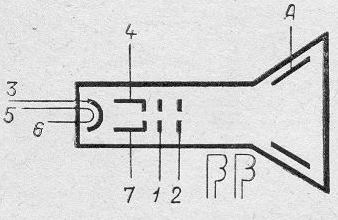

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name11LM6V
ApplicationVisual registration of electrical process
Envelopeglass, side anode
Mass, g300
Deflection degree70
Deflection typeelectromagnetic
Beam focusingelectrostatic
Coloryellow
Resolution, lines or focused line size, mm0,3mm
Brightness, kd/sq.m25
Filament voltage, V1,36
Anode voltage, kV6
