13LM6U

Check availability

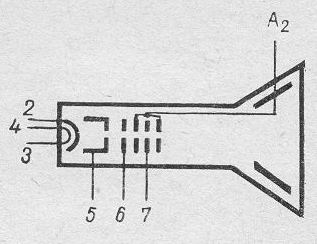

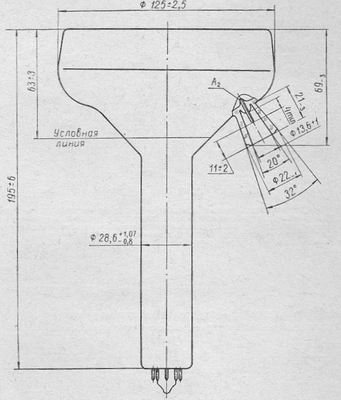

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name13LM6U
ApplicationVisual registration of electrical process
Envelopeglass, side anode
Mass, g650
Deflection typemagnetic
Beam focusingelectrostatic
Colorgreen
Resolution, lines or focused line size, mm0,25
Brightness, kd/sq.m200nit
Filament voltage, V6,3
Anode voltage, kV14
