13LM6V

Check availability

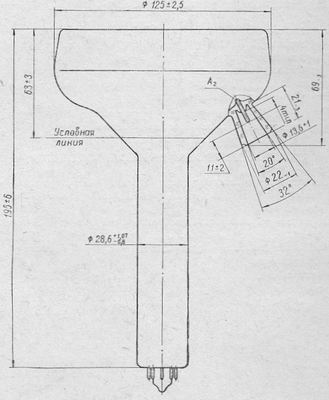

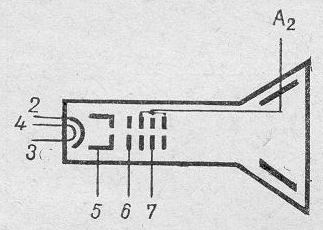

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name13LM6V
ApplicationVisual registration of electrical process
Envelopeglass, side anode
Mass, g650
Deflection typemagnetic
Beam focusingelectrostatic
Coloryellow
Resolution, lines or focused line size, mm0,4mm
Brightness, kd/sq.m150nit
Filament voltage, V6,3
Anode voltage, kV14
