13LM8V

Check availability

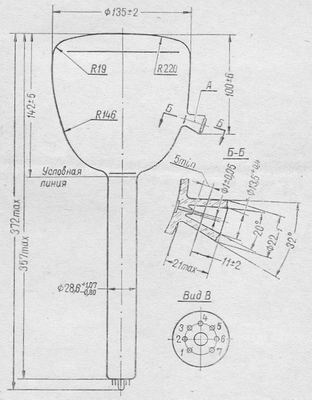

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name13LM8V
ApplicationVisual registration of electrical process
Envelopeglass, side anode
Mass, g1000
Deflection typemagnetic
Beam focusingmagnetic
Colorwhite
Resolution, lines or focused line size, mm1000
Brightness, kd/sq.m40nit
Filament voltage, V6,3
Anode voltage, kV12
Afterglow time/colorextended

See also

11LM2G Resolution, lines or focused line size, mm0,3mm 11LM3G Resolution, lines or focused line size, mm0,3mm 11LM6V Resolution, lines or focused line size, mm0,3mm Brightness, kd/sq.m25 13LM31V Resolution, lines or focused line size, mm0,5mm Brightness, kd/sq.m60nit 13LM4V Resolution, lines or focused line size, mm0,4mm Brightness, kd/sq.m80nit 13LM56I Resolution, lines or focused line size, mm0,5mm Brightness, kd/sq.m50 13LM57D Resolution, lines or focused line size, mm0,5mm Brightness, kd/sq.m40nit 13LM58K Resolution, lines or focused line size, mm0,5mm Brightness, kd/sq.m40nit 13LM5A Resolution, lines or focused line size, mm35 13LM6S Resolution, lines or focused line size, mm0,3 Brightness, kd/sq.m50nt
