14LM1N

Check availability

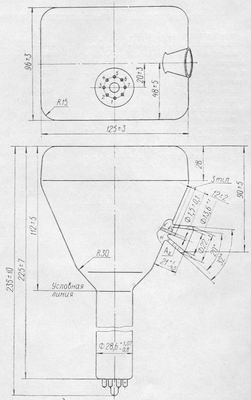

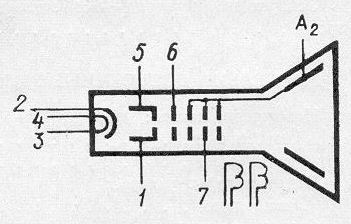

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name14LM1N
ApplicationVisual registration of electrical process
Envelopeglass, side anode
Mass, g750
Deflection typeelectromagnetic
Coloryellow-green
Resolution, lines or focused line size, mm0,4mm
Brightness, kd/sq.m400
Filament voltage, V6,3
Anode voltage, kV18
