16LN1

Check availability

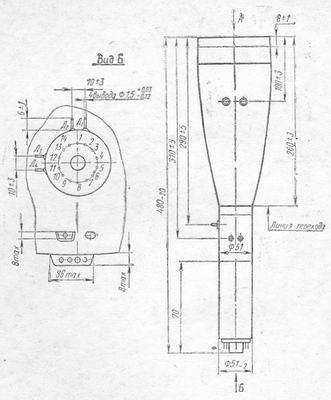

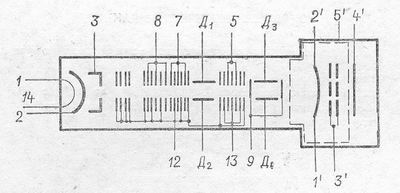

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name16LN1
Application fieldSingle electrical pulses to visible image conversion and memorizing
Envelopeglass with outputs on ballon
Mass, kg1,6
Beam focusingelectrostatic
Beam deflectionelectrostatic
Recording speed, km/sec1200
Brightness, kd/sq.m2
Resolution, lines or focused line size1,2mm
Storage time16hours
Reproduction time1min

See also

12LN1 Recording speed, km/sec0,3 13LN10 Recording speed, km/sec4000 Storage time24hours 13LN12 Recording speed, km/sec1,7 Reproduction time10sec 13LN2 Recording speed, km/sec4 Storage time30min 13LN4 Recording speed, km/sec0,05 Storage time4min 13LN5 Recording speed, km/sec200 Storage time16hours 13LN7 Recording speed, km/sec1200 Storage time75sec 13LN8 Recording speed, km/sec5 Storage time168hours 13LN9 Recording speed, km/sec1 Storage time168hours 16LN3 Recording speed, km/sec250 Reproduction time30min
