16LN3

Check availability

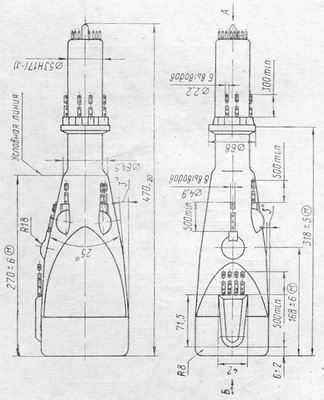

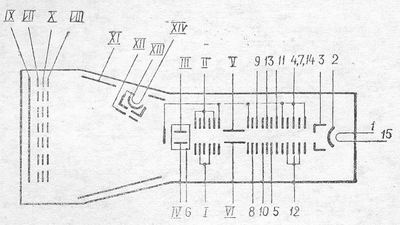

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name16LN3
Application fieldin oscilloscopes
Envelopeglass with outputs on ballon
Mass, kg2,5
Beam focusingelectrostatic
Coloryellow-green
Beam deflectionelectrostatic
Recording speed, km/sec250
Brightness, kd/sq.m60
Resolution, lines or focused line size0,8mm
Reproduction time30min

See also

12LN1 Recording speed, km/sec0,3 13LN10 Recording speed, km/sec4000 Storage time24hours 13LN12 Recording speed, km/sec1,7 Reproduction time10sec 13LN2 Recording speed, km/sec4 Storage time30min 13LN4 Recording speed, km/sec0,05 Storage time4min 13LN5 Recording speed, km/sec200 Storage time16hours 13LN7 Recording speed, km/sec1200 Storage time75sec 13LN8 Recording speed, km/sec5 Storage time168hours 13LN9 Recording speed, km/sec1 Storage time168hours 16LN1 Recording speed, km/sec1200 Storage time16hours
