GG1-0,5/30

Check availability

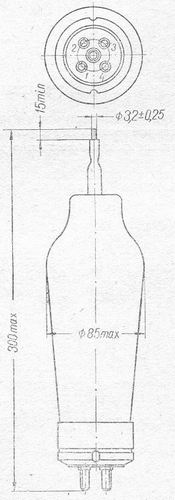

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGG1-0,5/30
Applicationrectification
Cathode typeoxide, indirect heating
Envelopeglass
Fillingargone
Mass, g400
Filament voltage, V6,3
Filament current, A6,5
Ignition voltage, V100
Anode-cathode voltage, V30
Anode current, A0,5
Reverse voltage, kV30
