GG1-1/22

Check availability

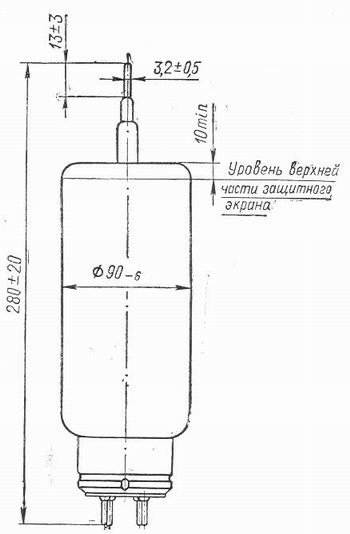

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGG1-1/22
Applicationrectification
Cathode typeoxide, indirect heating
Envelopeglass
Fillingargone
Mass, g600
Filament voltage, V6,3
Filament current, A14
Ignition voltage, V400
Anode-cathode voltage, V35
Anode current, A1
Reverse voltage, kV22
