GG1-0,5/20

Check availability

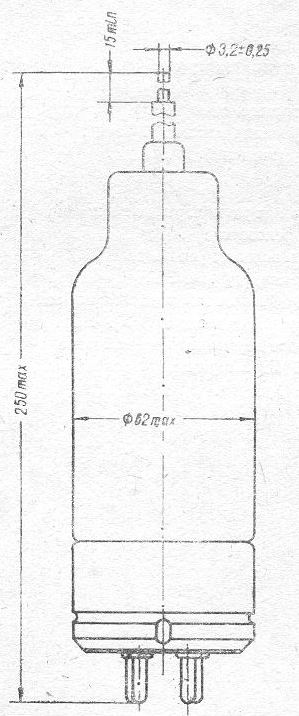

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGG1-0,5/20
Applicationrectification
Cathode typeoxide, indirect heating
Envelopeglass
Fillingargone
Mass, g350
Filament voltage, V6,3
Filament current, A5
Ignition voltage, V250
Anode-cathode voltage, V30
Anode current, A0,5
Reverse voltage, kV20
