GG1-0,5/5

Check availability

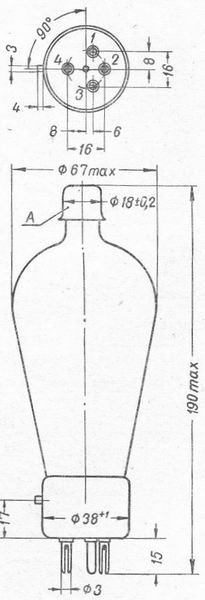

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGG1-0,5/5
Applicationrectification
Cathode typeoxide, direct heating
Envelopeglass
Fillinginert gas
Mass, g150
Filament voltage, V2,5
Filament current, A7,0-10,0
Anode-cathode voltage, V18
Anode current, A0,5
Reverse voltage, kV5

See also

GG1-0,1/1,5 Anode current, A0,1 Reverse voltage, kV1,5 GG1-0,3/8 Anode current, A0,3 Reverse voltage, kV8 GG1-0,5/20 Anode current, A0,5 Reverse voltage, kV20 GG1-0,5/30 Anode current, A0,5 Reverse voltage, kV30 GG1-1/22 Anode current, A1 Reverse voltage, kV22 GG1-2/16 Anode current, A2 Reverse voltage, kV16 GG1-2/5 Anode current, A2 Reverse voltage, kV5 GGR1-1,5/7 Anode current, A1,5 Reverse voltage, kV7 GH1S Anode current, A0,35 Reverse voltage, kV5,5 GH2K Anode current, A0,45 Reverse voltage, kV5
