SG18S

Check availability

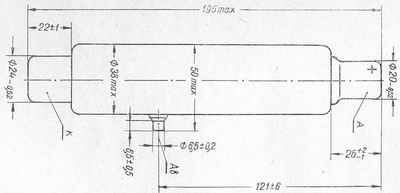

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameSG18S
TypeGas stabilizer
Cathode typecold
Envelopeglass
Fillingneon-helium
Mass, g100
Stabilized voltage, V950-1050
Ignition voltage, V1500
Current, mA10,0-60,0
Voltage recurrence, V15

See also

SG13P Stabilized voltage, V143-155 Current, mA5,0-30,0 SG15P-2 Stabilized voltage, V102-110 Current, mA5,0-30,0 SG16P Stabilized voltage, V79,5-85 Current, mA5,0-30,0 SG17S Stabilized voltage, V850-950 Current, mA10,0-60,0 SG19S Stabilized voltage, V1050-1150 Current, mA10,0-60,0 SG1P Stabilized voltage, V143-155 Current, mA5,0-30,0 SG1P-EV Stabilized voltage, V143-155 Current, mA5,0-30,0 SG201S Stabilized voltage, V86-92 Current, mA4,0-15,0 SG202B Stabilized voltage, V81-86 Current, mA1,5-5,0 SG203K Stabilized voltage, V79-86 Current, mA1,0-10,0
