SG203K

Check availability

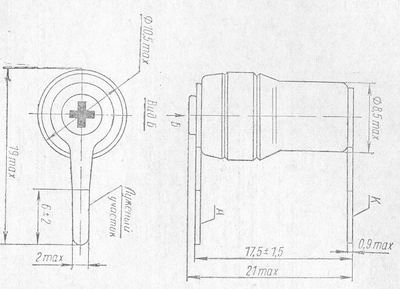

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameSG203K
TypeGas stabilizer
Cathode typecold
Envelopemetal-ceramic
Fillingneon-argon
Stabilized voltage, V79-86
Ignition voltage, V135
Current, mA1,0-10,0
Voltage recurrence, V0,1
Noise, mV/10
