SG201S

Check availability

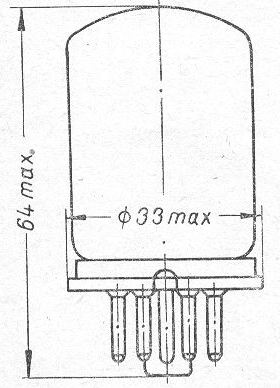

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameSG201S
TypeGas stabilizer
Cathode typecold
Envelopeglass
Fillingneon-krypton
Mass, g40
Stabilized voltage, V86-92
Ignition voltage, V150
Current, mA4,0-15,0
Voltage recurrence, V0,2
Noise, mV30
