13LN12

Check availability

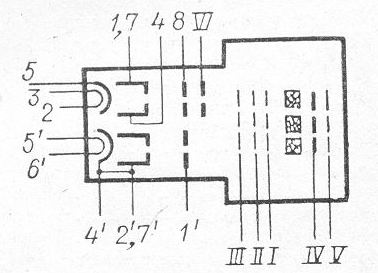

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name13LN12
Application fieldAs high brightness marks indicator
Envelopeglass with outputs on ballon
Mass, kg1
Beam focusingelectrostatic
Coloryellow-green
Beam deflectionelectromagnetic
Recording speed, km/sec1,7
Brightness, kd/sq.m2000
Resolution, lines or focused line size20lines/mm
Reproduction time10sec
