13LN5

Check availability

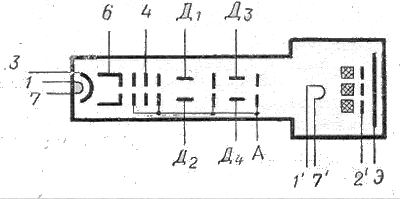

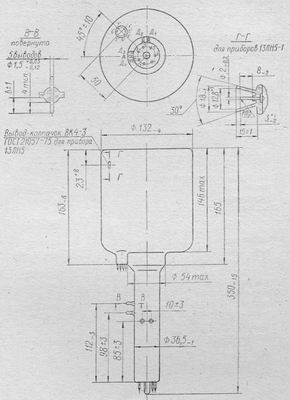

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name13LN5
Application fieldRecording, reproduction and storage of electrical signals
Envelopeglass with outputs on ballon
Mass, kg1
Beam focusingelectrostatic
Coloryellow-green
Beam deflectionelectrostatic
Recording speed, km/sec200
Brightness, kd/sq.m1
Resolution, lines or focused line size1mm
Storage time16hours

See also

12LN1 Recording speed, km/sec0,3 13LN10 Recording speed, km/sec4000 Storage time24hours 13LN12 Recording speed, km/sec1,7 Reproduction time10sec 13LN2 Recording speed, km/sec4 Storage time30min 13LN4 Recording speed, km/sec0,05 Storage time4min 13LN7 Recording speed, km/sec1200 Storage time75sec 13LN8 Recording speed, km/sec5 Storage time168hours 13LN9 Recording speed, km/sec1 Storage time168hours 16LN1 Recording speed, km/sec1200 Storage time16hours 16LN3 Recording speed, km/sec250 Reproduction time30min
