OV-22

Check availability

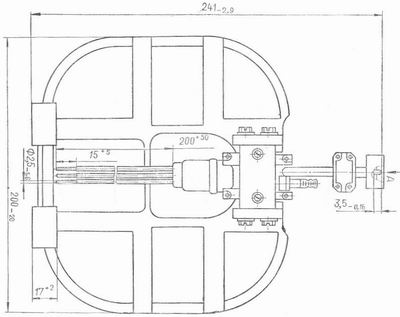

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameOV-22
Application fieldapplication as signal source in lab measuring equipment
Cathode typeimpregnated, indirect heating
Output typewaveguide
Envelopemetal-ceramic, with permanent magnet
Mass10kg
Cooling methodforced water
Frequency range1,65-2,55cm
Power irregularity in frequency band, dB13
Output power1,2mw
Filament voltage, V6,3
Filament current, A2
Slow-wave circuit voltage, V1000-4000

See also

OV-1 Frequency range2,95-4,6cm Output power15mW OV-12 Frequency range5,6-6,0cm Output power8mw OV-13 Frequency range3,7-5,7cm Output power5mW OV-14 Frequency range3,0-3,8cm Output power5mW OV-19 Frequency range10170-6530MHz Output power25mW OV-2 Frequency range4,4-6,8cm Output power20mW OV-20 Frequency range6980-4420MHz Output power45mW OV-21 Frequency range1,5-1,66cm Output power0,5mW OV-24 Frequency range1,14-1,67cm Output power1mW OV-30 Frequency range0,8-1,16cm Output power1mW
