OV-30

Check availability

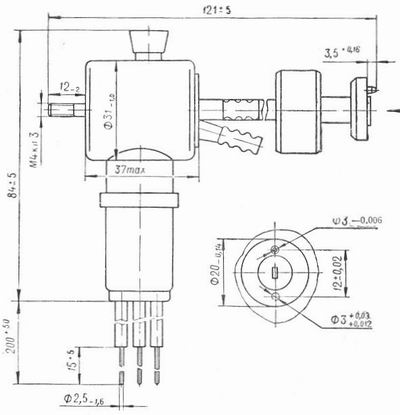

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameOV-30
Application fieldapplication as signal source in lab measuring equipment
Cathode typeimpregnated, indirect heating
Output typewaveguide
Envelopemetal-ceramic
Mass300g
Cooling methodforced water
Frequency range0,8-1,16cm
Power irregularity in frequency band, dB13
Output power1mW
Filament voltage, V4,5-7,5
Filament current, A2
Slow-wave circuit voltage, V1000-4000
