OV-49

Check availability

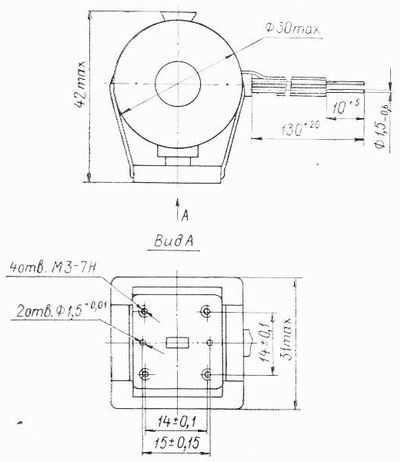

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameOV-49
Application fieldapplication in railway coach speedometer
Cathode typeindirect heating
Output typewaveguide
Envelopemetal-ceramic, with electromagnetic focusing system
Mass200g
Cooling methodconductive
Frequency range7,92-8,08cm
Output power50mW
Filament voltage, V1,2
Filament current, A2,5
Slow-wave circuit voltage, V160
