RR-15-1

Check availability

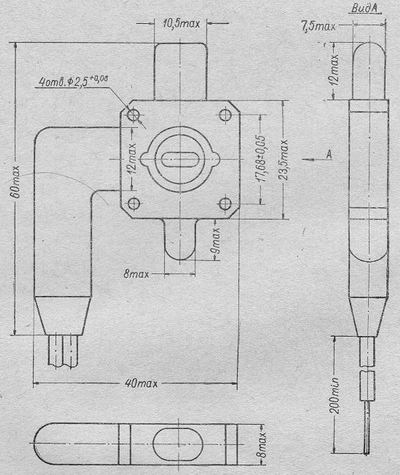

SG2S pin diagram
Click to see in full size
NameRR-15-1
Typewide-band
Application fielddetector protection
Envelopemetal
Mass55g
Frequency range0,803-0,827cm
Pulse power20-30kW
Full power30mW
Pulse repeating frequency5000Hz
External loading agreement coefficient1,3
Relax time5,5uS
Pulse duration0,1uS

See also

RR-1 Frequency range3179-3309MHz Pulse power1000kW RR-140 Frequency range2,81-2,96cm Pulse power300W RR-141 Frequency range912MHz Pulse power7-10kW RR-142 Frequency range1912MHz Pulse power7kW RR-143 Frequency range1912MHz Pulse power100mW RR-2 Frequency range2939-3059MHz Pulse power1000kW RR-20 Frequency range3056-3162MHz Pulse power1000kW RR-200 Frequency range3,17-3,23cm Pulse power50kW RR-23 Frequency range0,803-0,827cm Pulse power20-30kW RR-3 Frequency range2773-2885MHz Pulse power1000kW
