RR-23

Check availability

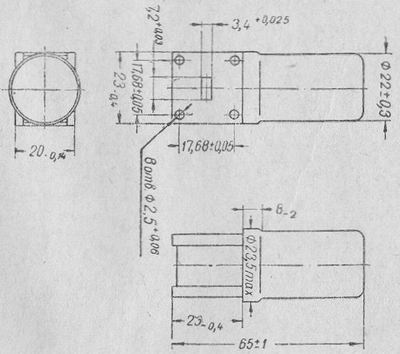

SG2S pin diagram
Click to see in full size
NameRR-23
Typewide-band
Application fieldTransmitter block in special equipment
Envelopemetal
Mass60g
Frequency range0,803-0,827cm
Pulse power20-30kW
Pulse repeating frequency2000
External loading agreement coefficient1,2
Relax time5uS
Pulse duration0,5uS
