RR-200

Check availability

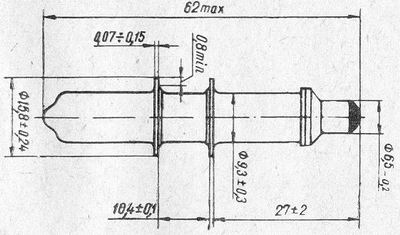

SG2S pin diagram
Click to see in full size
NameRR-200
TypeHi-Q resonant
Application fieldRadar receiver protection from Hi-power pulses
Envelopeglass
Mass6g
Frequency range3,17-3,23cm
Pulse power50kW
Full power60mW
Average power50W
Pulse repeating frequency1000Hz
Relax time8uS
Pulse duration0,3-1,0uS
