GSh-1

Check availability

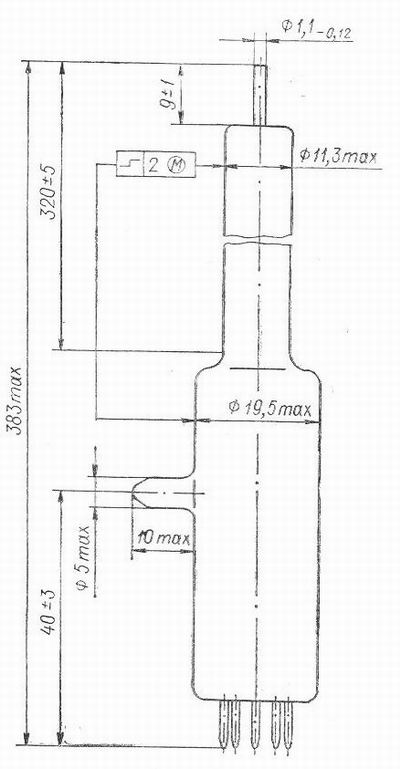

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGSh-1
Application fieldReceiver noise coefficient measurement
Cathode typeflat, oxide, indirect heating
Envelopeglass
Fillingneon
Mass20g
Frequency band3400-5350
Spectral concentration of noise power50kTo
Filament voltage, V11,5
Filament current, A0,6 to 1,2
Ignition voltage5
Anode current, A0,12 to 0,15
Tolerance, %1000%
External loading agreement coefficient1,2
