GSh-102

Check availability

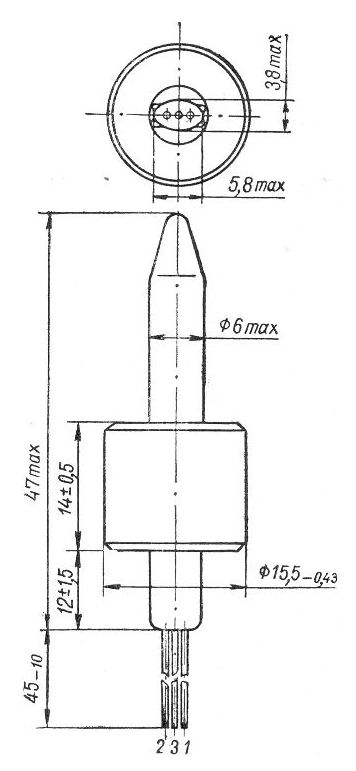

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGSh-102
Application fieldNoise oscillation in special equipment
Cathode typeoxide, indirect heating
EnvelopeSuperminiature, glass
FillingHelium
Mass20g
Frequency band20Hz-5MHz
Spectral concentration of noise power0,25V/sq.rt.MHz
Filament voltage, V6,3
Filament current, A0,5
Anode voltage, V120-140
Anode current, A0,013-0,018
Tolerance, %10.5dB

See also

GSh-1 Frequency band3400-5350 Spectral concentration of noise power50kTo Gsh-10 Frequency band3,6-11,5cm GSh-11 Frequency band2,6-3,6cm GSh-13 Frequency band100-15000MHz Spectral concentration of noise power88-94,4dB GSh-16 Frequency band7,7-9,93GHz Spectral concentration of noise power45dB GSh-2 Frequency band2,9 to 4,0cm Spectral concentration of noise power59 to 70kTo GSh-3 Frequency band9-18cm Spectral concentration of noise power55-70kTo GSh-5 Frequency band1,16-2,96cm GSh-5A Frequency band12,0-25,85GHz GSh-6 Frequency band0,57-1,18cm
