GSh-5

Check availability

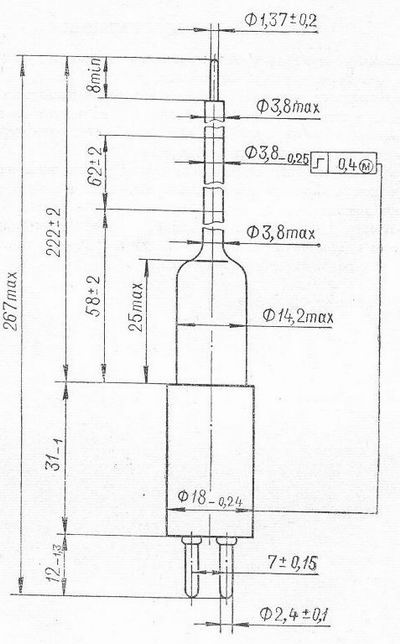

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGSh-5
Application fieldReceiver noise coefficient measurement
Cathode typedirect heating
Envelopeglass
Fillingneon
Mass20g
Frequency band1,16-2,96cm
Filament voltage, V6,3
Filament current, A0,4-0,55
Ignition voltage1,0-2,5kV
Anode voltage, V190-225
Anode current, A0,07
Tolerance, %10
External loading agreement coefficient1,25

See also

GSh-1 Frequency band3400-5350 Spectral concentration of noise power50kTo Gsh-10 Frequency band3,6-11,5cm GSh-102 Frequency band20Hz-5MHz Spectral concentration of noise power0,25V/sq.rt.MHz GSh-11 Frequency band2,6-3,6cm GSh-13 Frequency band100-15000MHz Spectral concentration of noise power88-94,4dB GSh-16 Frequency band7,7-9,93GHz Spectral concentration of noise power45dB GSh-2 Frequency band2,9 to 4,0cm Spectral concentration of noise power59 to 70kTo GSh-3 Frequency band9-18cm Spectral concentration of noise power55-70kTo GSh-5A Frequency band12,0-25,85GHz GSh-6 Frequency band0,57-1,18cm
