Gsh-10

Check availability

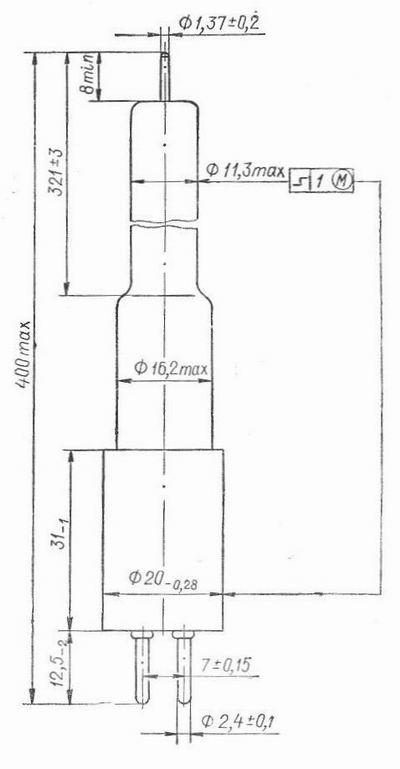

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGsh-10
Application fieldReceiver noise coefficient measurement
Cathode typedirect heating
Envelopeglass
Fillingneon
Mass40g
Frequency band3,6-11,5cm
Filament voltage, V6,3
Filament current, A1,07-1,22
Anode voltage, V260-310
Anode current, A0,15
Tolerance, %4
