RR-51

Check availability

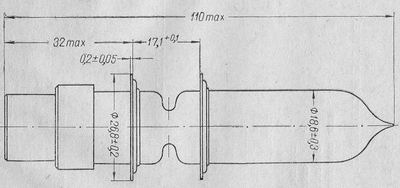

SG2S pin diagram
Click to see in full size
NameRR-51
TypeHi-Q resonant
Application fieldapplication in radars
Envelopeglass
Mass60g
Frequency range9,2-11,1cm
Pulse power2MW
Average power2,5kW
Pulse repeating frequency2500Hz
Relax time30uS
Pulse duration0,5uS
