RR-82

Check availability

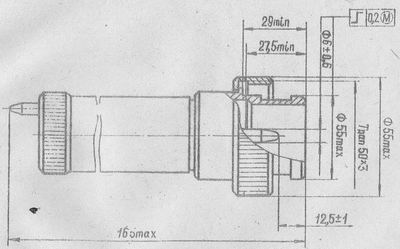

SG2S pin diagram
Click to see in full size
NameRR-82
Typewide-band
Application fieldapplication in antenna switch to protect receiver from transmitter pulses
EnvelopeMetal-glass
Mass0,7kg
Frequency range570MHz
Pulse power250kW
Pulse repeating frequency375Hz
External loading agreement coefficient1,5
Relax time40uS
Pulse duration3uS
