RR-83A

Check availability

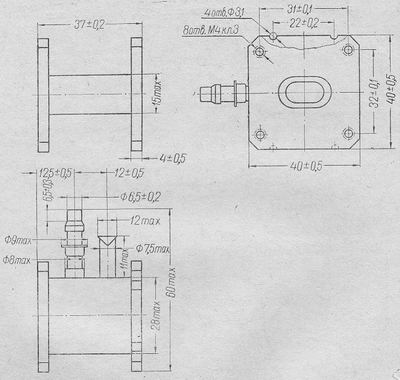

SG2S pin diagram
Click to see in full size
NameRR-83A
Typewide-band
Application fieldMixing detector protection
Envelopemetal
Mass150g
Frequency range3,1-3,5cm
Pulse power12kW
Average power40W
Pulse repeating frequency3330Hz
External loading agreement coefficient1,8
Relax time2uS
Pulse duration1uS
