K-12

Check availability

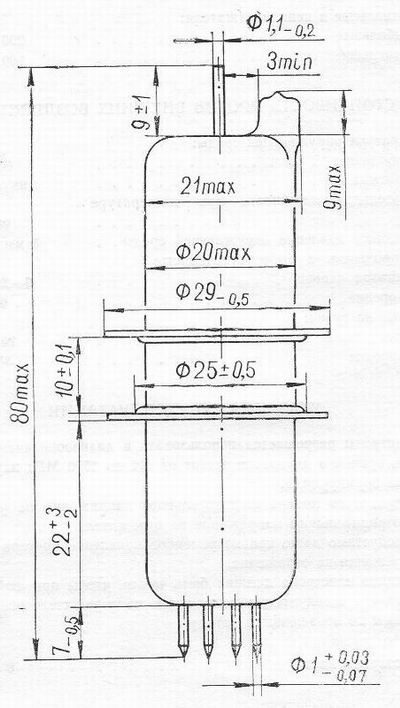

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameK-12
TypeReflex
Application fieldapplication as heterodine in receivers or measuring equipment
Cathode typeOxide, indirect heating
Envelopeglass
Mass25g
Cooling methodNatural
Frequency band2500-3636MHz
Output power80mW/2500MHz 100mW/3000MHz 30mW/3636MHz
Tuning steepness, MHz/mA0,25
Tuning range, MHz12
Filament voltage, V6,3
Filament current, A0,63-0,73
Resonator voltage, V250
Reflector negative voltage, V45-280
