K-162

Check availability

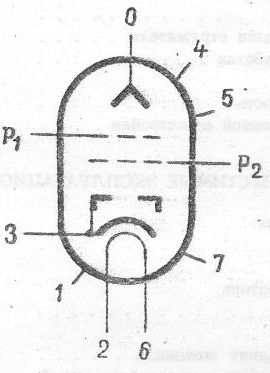

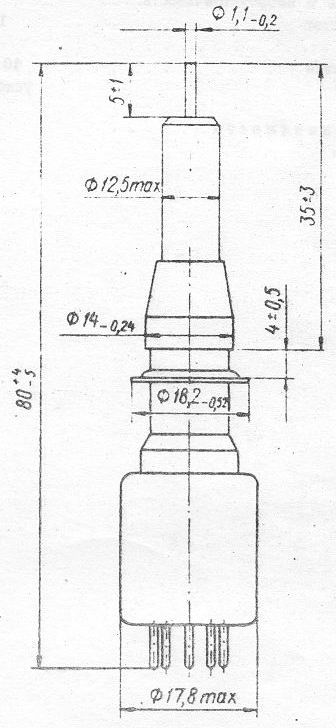

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameK-162
TypeReflex
Application fieldapplication in measuring equipment
Cathode typeindirect heating
Envelopemetal-ceramic with detachable tunable resonator
Mass30
Cooling methodNatural
Frequency band6,0-10,8GHz
Output power40mW
Tuning steepness, MHz/mA3
Tuning range, MHz5
Filament voltage, V6,3
Filament current, A0,45-0,6
Resonator voltage, V350
Reflector negative voltage, V30-500
