K-154A

Check availability

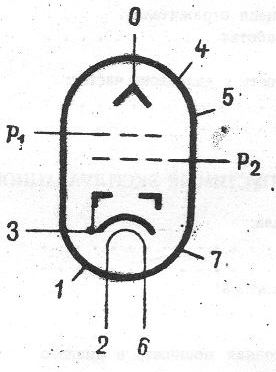

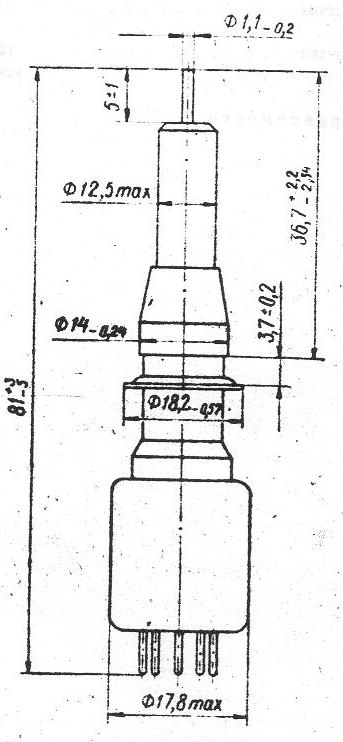

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameK-154A
TypeReflex
Application fieldapplication in measuring equipment
Cathode typeindirect heating
Envelopemetal-ceramic
Mass30g
Cooling methodNatural
Frequency band8,0-9,7GHz
Output power50mW
Tuning steepness, MHz/mA1,5
Tuning range, MHz4
Filament voltage, V6,3
Filament current, A1
Resonator voltage, V350
Reflector negative voltage, V30-500
