K-15

Check availability

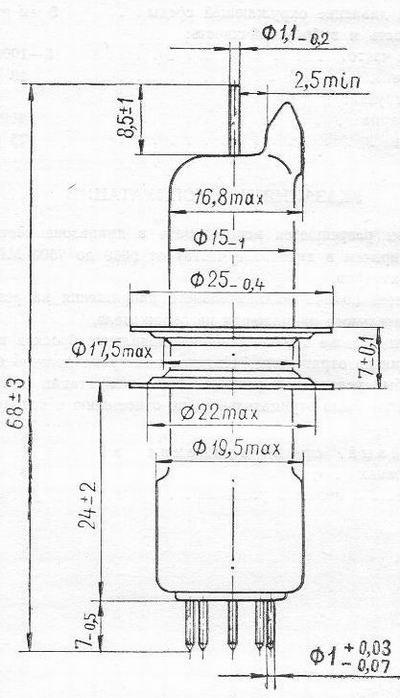

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameK-15
TypeReflex
Application fieldapplication as heterodine in receivers or measuring equipment
Cathode typeOxide, indirect heating
Envelopeglass
Mass20g
Cooling methodNatural
Frequency band3090-5660MHz
Output power50mW
Tuning range, MHz19
Filament voltage, V6,3
Filament current, A0,45-0,6
Resonator voltage, V250
Reflector negative voltage, V230-350
