M-96

Check availability

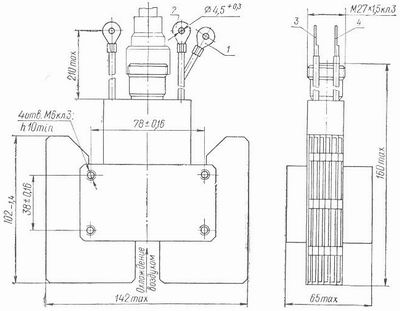

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameM-96
Typecontinous working
Application fieldapllication in medical equipment and industrial heating and drying
Envelopemetal-ceramic
Mass, kg1,8
Cooling methodforced air
Frequency range1st 2450-2498/2nd 2402-2450MHz
Output power180W
Filament voltage, V1,8
Filament current, A6,5
Anode voltage, kV2
External loading agreement coefficient1,1
