MI-158-1

Check availability

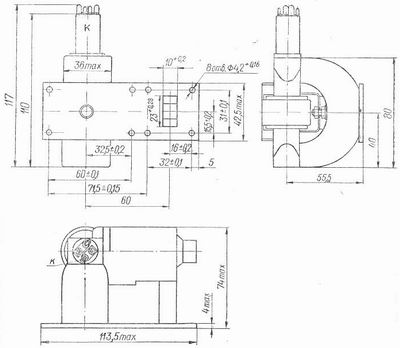

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameMI-158-1
TypePulse
Application fieldapplication in UHF generators
Cathode typeoxide, indirect heating
EnvelopeMetal, batched
Mass, kg1,2
Cooling methodNatural
Frequency range9330-9420MHz
Output power7kw
Frequency pulling, MHz15
Tuning steepness2MHz/A
Filament voltage, V6,3
Filament current, A1,2-1,9
Anode voltage, kV5,0-6,0
External loading agreement coefficient1,1
Pulse duration, uS0,5
Space factor or pulse repeating frequency800Hz
