MI-258

Check availability

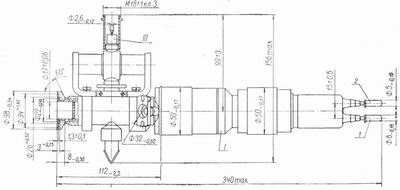

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameMI-258
TypePulse
Application fieldapplication in UHF generators
Cathode typeoxide, indirect heating
Mass, kg3
Cooling methodforced water
Frequency range36300-36950Mhz
Output power270kW
Frequency pulling, MHz80
Tuning steepness0,8MHz/A
Filament voltage, V5,6
Filament current, A6,5
Anode voltage, kV30
External loading agreement coefficient1,4
Pulse duration, uS0,4
Space factor or pulse repeating frequency0,0005

See also

M-104 Typecontinous working Frequency range1st 933,3/2nd 896,7 M-108 Typecontinous working Frequency range35200-35500MHz M-305 Typecontinous working, electronic tuning Frequency range2140-1070MHz M-306 Typecontinous working, electronic tuning Frequency range1250-625MHz M-307M Typecontinous working, electronic tuning, magnetically shielded Frequency range4000-4400MHz M-32 Typecontinous working Frequency range9,5-12,5cm M-80 Typecontinous working Frequency range18675-18525MHz M-81 Typecontinous working Frequency range1st 2375-2425 /2nd 2325-2375MHz M-82 Typecontinous working Frequency range35520-35270MHz M-83 Typecontinous working Frequency range58700-58300MHz
