MI-268

Check availability

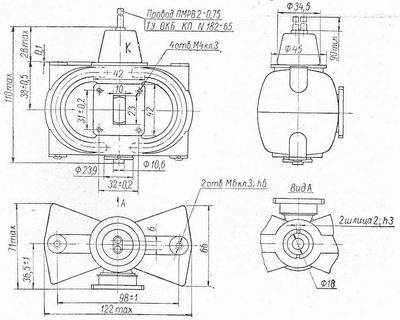

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameMI-268
TypePulse
Application fieldapplication in UHF generators
Cathode typeoxide, indirect heating
EnvelopeMetal
Mass, kg1,6
Cooling methodforced air
Frequency range9377-9373MHz
Output power16-25kW
Frequency pulling, MHz12
Filament voltage, V6,3
Filament current, A1,9-2,2
Anode voltage, kV7,0-7,5
External loading agreement coefficient1,1
Pulse duration, uS0,5-4,0
Space factor or pulse repeating frequency416Hz
