MI-29B1

Check availability

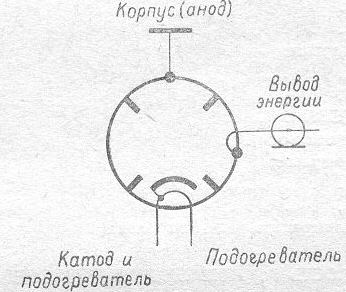

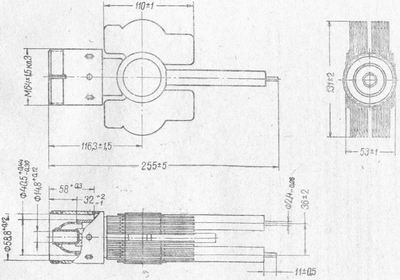

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameMI-29B1
TypePulse
Application fieldoscillation of microwave pulses
Cathode typeoxide, indirect heating, grid-shaped
EnvelopeMetal, not-batched
Mass, kg2,6
Cooling methodforced air
Frequency range3115-3085MHz
Output power850W
Frequency pulling, MHz10
Tuning steepness0,3MHz/A
Filament voltage, V12,6
Filament current, A3,0-3,6
Anode voltage, kV26-30
External loading agreement coefficient1,1
Pulse duration, uS2,5
Space factor or pulse repeating frequency400Hz
