UV-204

Check availability

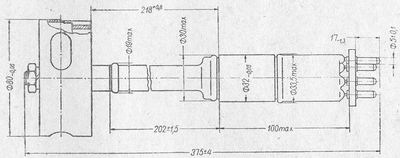

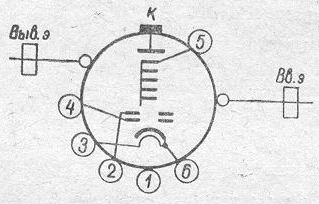

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameUV-204
Application fieldinput power amplification
Cathode typeOxide, indirect heating
Output typewaveguide 61x10mm
Envelopeglass with external collector
Mass650g
Cooling methodforced air
Frequency range3900-3400MHz
Output power20W
Gain20dB
Filament voltage, V12,6
Filament current, A1,05-1,25
First anode voltage, V2200-2400
Slow-wave circuit voltage, V2500-2570
Control electrode voltage, V20-60
Collector voltage, V2600-3000
External loading agreement coefficient1,2
