UV-229-1

Check availability

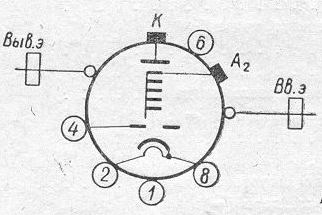

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameUV-229-1
Application fieldUHF power amplification
Cathode typeOxide, indirect heating
Output typewaveguide
Envelopeglass with external collector
Mass350
Cooling methodforced air
Frequency range4200-3400
Output power6W
Filament voltage, V6,3
Filament current, A1,9-2,6
First anode voltage, V650-950
Slow-wave circuit voltage, V1500-1750
Collector voltage, V1500-2000
External loading agreement coefficient1,2
