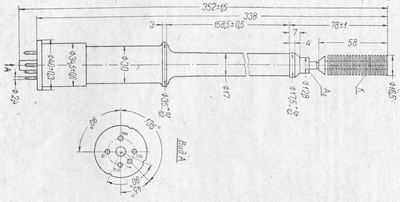

UV-229

Check availability

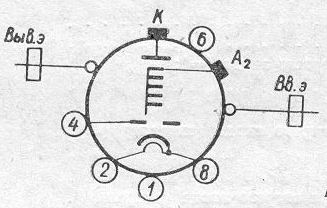

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameUV-229
Application fieldUHF power amplification
Cathode typeOxide, indirect heating
Output typewaveguide
Envelopeglass with external collector
Mass350
Cooling methodforced air
Frequency range4200-3400
Output power6W
Gain24,8dB
Filament voltage, V6,3
Filament current, A2,1-2,5
First anode voltage, V650-950
Slow-wave circuit voltage, V1500-1750
Collector voltage, V1500-2000
External loading agreement coefficient1,3
Noise coefficient30dB
