LI17

Check availability

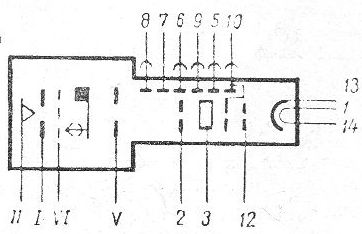

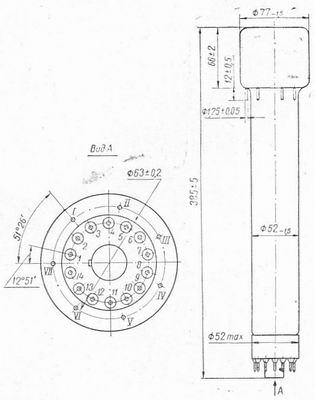

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameLI17
TypeImage-orthicon
Application fieldin 625-string mobile TV equipment
Photocathode typeBismuth-Silver-Cesium translucent
Beam focusingmagnetic
Beam deflectionmagnetic
Max.spectrum sensitivity, Angstrem4500-5800
Photocathode area, mm24x32 or 28x28
Resolution, lines625
