LI212

Check availability

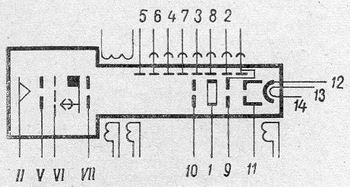

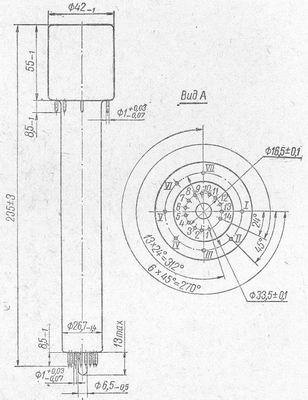

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameLI212
TypeImage-orthicon
Application fieldin 625-string TV equipment
Photocathode typeAntimony-Cesium, translucent
Beam focusingelectromagnetic
Beam deflectionelectromagnetic
Max.spectrum sensitivity, Angstrem4000-5000
Photocathode area, mm12 x 16
Resolution, lines600
Illuminating intensity, Lux0,1-5,0
